$50.00/Day

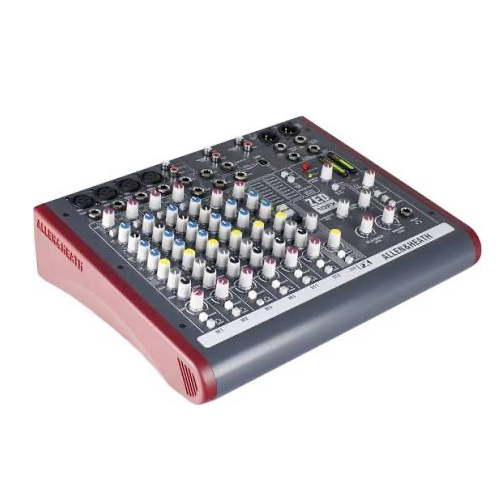

The Allen & Heath ZED-10FX is a compact, versatile analog mixer designed for musicians, small bands, and content creators seeking professional-grade sound in a portable format. Combining high-quality preamps, built-in effects, and USB connectivity, it serves as an ideal solution for live performances, studio sessions, and mobile recording setups.
Key Features
-
10 Channels: Includes 4 mono mic/line channels and 3 stereo line channels, accommodating a variety of input sources.
-
High-Quality Preamps: Features 4 mic preamps with 60dB gain range, ensuring clear and detailed audio capture.
-
Hi-Z Guitar Inputs: Channels 3 and 4 offer high-impedance inputs with Class A FET circuitry and a 26dB gain boost, allowing direct connection of guitars without the need for DI boxes.
-
Built-In Effects: Equipped with 16 time-delay effects, including reverbs, delays, flanger, and chorus, all controllable via a simple interface with tap tempo functionality.
-
USB Audio Interface: Provides a 2-in/2-out USB interface for easy recording and playback with Mac or Windows computers, supporting sample rates of 32, 44.1, or 48kHz.
-
3-Band EQ with MusiQ: Each mono channel features a responsive 3-band EQ with swept mid-frequency and optimized Q factor for precise tonal shaping.
-
Flexible Monitoring: Offers comprehensive monitoring options, including headphone output, stereo monitor outs, and separate 2-track record outputs.
-
Durable Construction: Built with robust components and a sturdy chassis, ensuring reliability for both studio and live environments.
Technical Specifications
-
Mic/Line Inputs: 4 XLR/TRS combo jacks
-
Stereo Inputs: 3 stereo line channels
-
Outputs: Main stereo outputs (XLR), monitor outputs, headphone output
-
Phantom Power: 48V for condenser microphones
-
USB: Type B, 16-bit, 2-in/2-out
-
EQ: 3-band EQ with swept mid on mono channels
-
Dimensions: 13.4” x 10.8” x 3.9” (340mm x 275mm x 100mm)
-
Weight: 5.5 lbs (2.5 kg)
